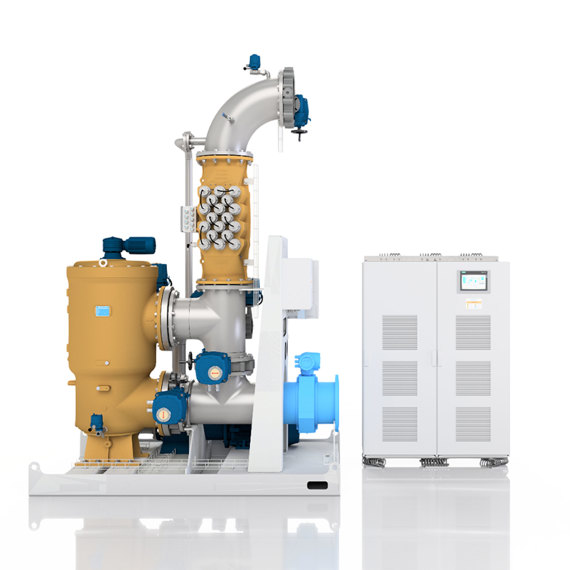

CompactClean OptIMO

Save costs with the CompactClean OptIMO Ballast Water Management System for vessels trading globally, but where reduced flowrate in US territory can be accepted.

If your vessel trades primarily outside of US waters...

in International Maritime Organization (IMO)-regulated waters, we offer the CompactClean OptIMO system for ballast water management.

The CompactClean OptIMO system is designed to utilize the fact, that the IMO regulations uses MPN test method for approvals, which is more suitable for UV systems.



Thus, the CompactClean OptIMO BWMS uses an optimized and energy saving UV reactor to treat the ballast water, based on the same proven and high-quality technology as the well known DESMI CompactClean BWMS. This saves ship owners money on purchase and running costs.

Dual mode: IMO and USCG

Even though CompactClean OptIMO is optimized for full flow in IMO waters, it can still be used in USCG waters at 75% of max flowrate. Thus, if the unit size handles 1000 m3/h of water in IMO waters, it will handle 750 m3/h of water in USCG waters.



Dual-mode software takes care of the correct treatment scheme after the operator inputs which mode to operate the system in. The destination port will determine whether the system should operate in IMO or USCG mode.

UV treatment at very challenging water quality

CompactClean OptIMO can, like CompactClean, handle water with low UV-transmission (UV-T) rate of 40% in US territory. Furthermore, CompactClean OptIMO has been certified to treat the water with UV-T transmission quality all the way down to the darkest of water (35% UV-T) in IMO mode.





CompactClean

OptIMO

(Model)

Max Flow

(IMO mode)

Ballast

[m3/hr]

Max Flow

(IMO mode)

De-Ballast

[m3/hr]

Max Flow

(USSG mode)

Ballast

[m3/hr]

Max Flow

(USCG mode)

De-Ballast

[m3/hr]
50

50

60

40

40
55

55

60

40

40
100

100

135

85

85
135

135

135

85

85
170

170

240

160

160
190

190

240

160

160
340 340 370 250 250
500 510 510 340 340
750 750 750 500 500
1000 1040 1200 870 870
1500 1500 1650 1180 1180
2100 2100 2500 1740 1740





Max treatment (CompactClean OptIMO 1000 as example):

IMO Ballast 1040 m3/hr
IMO De‐Ballast 1200 m3/hr
USCG Ballast 870 m3/hr
USCG De‐Ballast 870 m3/hr



Specifications:

UV reactor size 108 kW
Filter size 1040 m3/hr
Main pipe dim. DN300

Technical Flyers

BWMS Technical Flyer



For vessels primarily trading in IMO waters

CompactClean - IMO Solution

Get Quote

MORE INFORMATION

UV TRANSMISSION

The unique UV unit is designed and manufactured by DESMI. The special shape ensures the highest possible applied UV dose to all organisms in the treated water.

STANDARD SYSTEMS & CONFIGURATIONS

Our systems can be delivered in many different sizes and as loose components, skidmounted or containerized.

TRAINING PACKAGES

DESMI Ocean Guard offers various training packages for CompactClean Ballast Water Management Systems. It is of utmost importance that the crew has been familiarized with the system and has sufficient knowledge to operate and maintain the system

DESMICloud

The DESMICloud solution ensures not only peak performance but also provides a detailed historical analysis of all DESMI’s flow technology products and their operational metrics.

BALLAST WATER MANAGEMENT MADE EASY

SPECIAL FEATURES

- Smooth Port Operations

- Integrated and Compliant Solution for Ballast Stripping Operations

- Fully Automated with Easy Integration into Ship Automation System

- Long Lifetime of Components Gives you Reliable Treatment and Low OPEX

SPECIAL FEATURES

NEWS

Read all about the activities of DESMI Ocean Guard.

MAKING THE RIGHT CHOICE

Download our white paper comparing the most prominent Ballast Water Management Technologies.

APPROVALS

The CompactClean BWMS has IMO, USCG and Lloyds Register type approval, and the BWMS operates in the exact same way both inside and outside US Territory.

SERVICE APP

DESMI CompactClean BWMS Service & Maintenance Tool

Videos

Watch and Learn about DESMI Ocean Guard A/S and our pioneering ballast water management systems

Brochures

Read and download brochures and white papers

WE ASSIST YOU FROM CONTACT TO COMPLIANCE

WE OFFER OUR SERVICES THROUGHOUT THE PROJECT

We strive to accommodate the needs of our customers in every way possible. Besides our products we also offer complete engineering including ship inspections, 3D laser scanning, preparation of drawings, class approval, prefabrication of piping, installation and commissioning.
