With more than 2,000 systems sold we have proven our technology – reliable and with small foot print











With more than 2,000 systems sold we have proven our technology – reliable and with small foot print











With more than 2,000 systems sold we have proven our technology – reliable and with small foot print











With more than 2,000 systems sold we have proven our technology – reliable and with small foot print











With more than 2,000 systems sold we have proven our technology – reliable and with small foot print

1. With more than 2,000 systems sold we have proven our technology – reliable and with small foot print
2. Simple operation without adding chemicals except for cleaning – between 0.3 – 0.7 kg citric acid per cleaning operation which can be pumped into the ballast tank or overboard after cleaning operation. Our citric acid is bio degradable, so no harm to the environment at all.
3. Chose “Ballast” or “Deballast” press “Start” that’s it. If you have installed VFD for your ballast pumps our system handles the entire process. When finished press stop and the system again handles the rest. Meaning the crews coming onboard the vessel will find the BWMS intuitive and very user-friendly.
4. Installation is very simple meaning few man hours used. Commissioning includes training of the crew.
5. DESMI has a very professional service department, DeServe, with staff close to most of the larger ports in the world.
6. DESERVE has a service concept where we contact you when service is required. This both for vessels sailing in only IMO water as well as vessels calling US waters with the more stringent requirements

Why install DESMI Compact Clean BWMS onboard your new ship

What is ballast water management / ballast water treatment?

A ballast water management system (BWMS) is a system designed to neutralize or kill organism before they enter into a ship's ballast tank. This is done to prevent spread of invasive species across the world. A ship typically takes in ballast water when unloading cargo. This ballast water might contain algae, bacteria and small organisms from another part of the world. This problem is fixed by making Ballast Water Management Systems mandatory on larger vessels. The CompactClean system is a BWMS based on UV light technology.



Quick history of ballast water management development and its entry into force

Ballast Water Management has been mandatory for all new build vessels since September 8, 2017 and for and existing vessels it has been mandatory since September 8, 2019 at the time of renewing their IOPP certificate. All vessels over 400 GT needs to have a system installed by September 8, 2024. DESMI Ocean Guard has been developing ballast water management & treatment Systems since 2009.



Why is ballast water management a neccesity for large ships travelling the world?

It has proven that invasive species are spread across the world via ballast water. To avoid this a BWMS has become mandatory equipment for all vessel above 400 GT. The BWMS system, like CompactClean, will neutralize or kill all organisms in the ballast water to avoid disturbing the ecological balance of the world..



How does ballast water management work?

There are several technologies available out there. Some are based on active substances like adding chemicals to the water to kill the organism while other systems are based on UV technology. The CompactClean system is based on filtration and UV light. The filter will remove larger organism above 20 microns and the UV light will kill the smaller organism before they enter the ballast tanks.

Where should ballast water exchange be conducted?

A ballast water exchange is only necessary to conduct if your system has come out of compliance during normal treatment when loading and unloading goods. If a system goes out of compliance and keep letting water into the ballast tanks, then this water needs to be exchanged prior to entering the next port. This has to be done 200 nautical miles from the shore on deep water. A CompactClean system can treat all the way down to a UV-T of 35%. This means that it can treat the water in virtually all ports around the world.



How are DESMI Ocean Guard A/S working in providing the best ballast water management in the world?

DESMI Ocean Guard is continuously improving their technology. The CompactClean system is the 3rd generation of systems. This system has been further developed into three variants tailormade for specific user scenarios, namely CompactClean, CompactClean OptIMO and CompactClean Bulker.

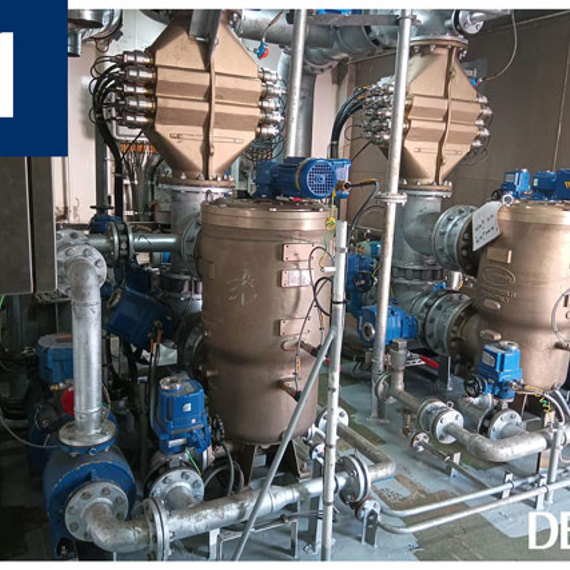

The CompactClean system is based on UV light and therefore does not produce or need any hazardous chemicals in order to work. The CompactClean system utilizes a unique UV reactor optimized for high flows. The UV reactor is produced in Nickel Alu Bronze, which is a very seawater resistant material. It has proven its superior qualities in marine pumps for decades. The system can treat water down to a record breaking 35% UV-T in IMO mode and 40% in USCG waters.



Is the CompactClean system certified by IMO and USCG?

The CompactClean system has been approved for IMO regulation since September, 2018 and USCG approved since April, 2019. Furthermore the certificates are all according to newest standards (IMO, revised G8) and has some of the best operational limitation in the industry; no limitations with regards to salinity and temperature, no holding time requirements in IMO waters and only two hours in USCG waters.



Learn more about our approvals here
